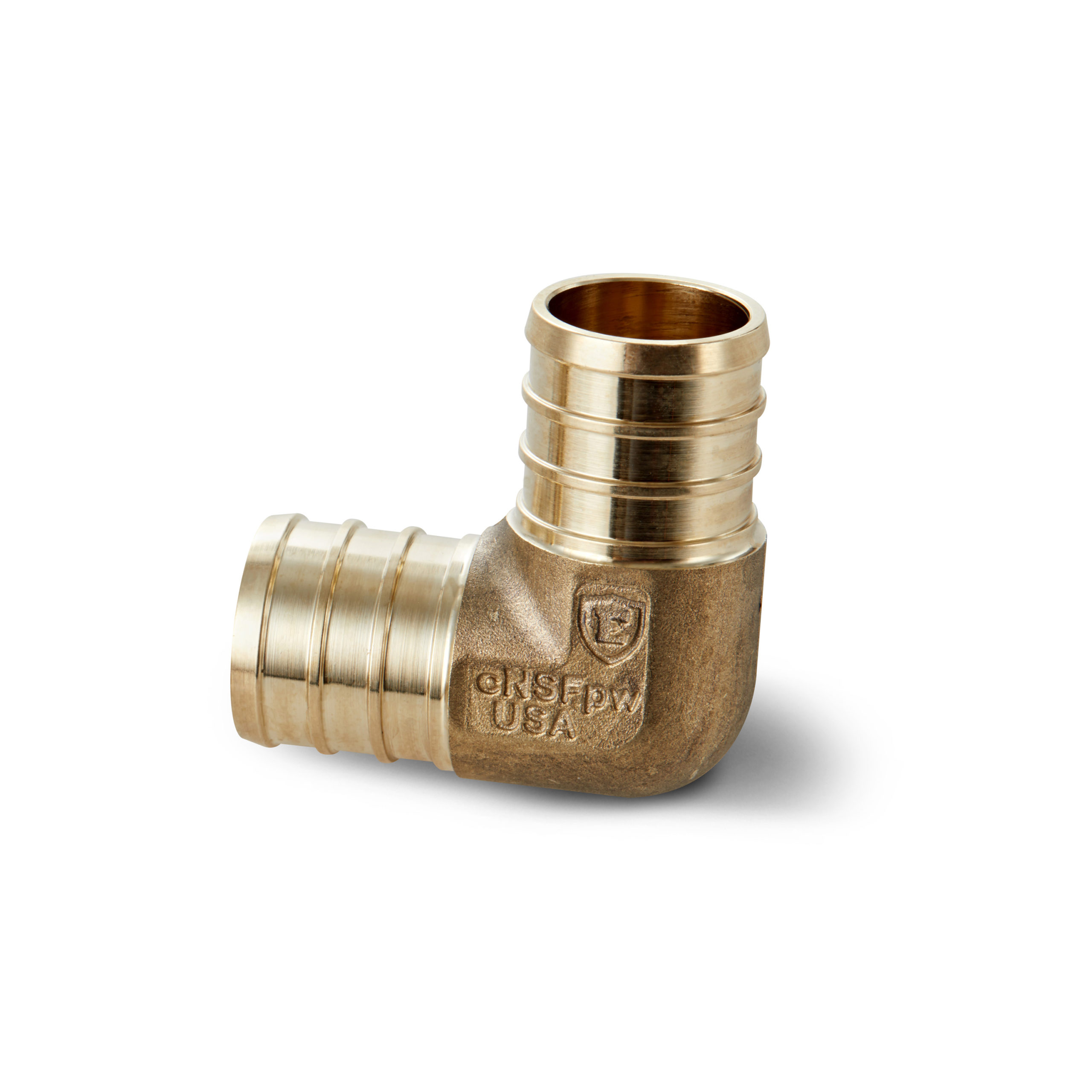

Water Armor® PEX Elbows

$21.50$52.25

SKU: WAEL550JJ Categories: , ,

MADE IN AMERICA. The Water Armor®, PEX elbows made from ECO BRASS® alloy is ideal for your plumbing project. The elbow configuration is best used for plumbing projects that require a change in direction of the plumbing line. The product is used for both commercial and residential plumbing installations. The elbow is composed of two PEX crimp barbed ends, at a 90 degree orientation, for use with PEX tubing and crimp rings. Our lead-free* ECO BRONZE® and ECO BRASS® alloys provide outstanding dezincification resistance and are safe to use for potable water applications in all 50 states, including California.

We are the preferred plumbing part provider to leading American plumbing supply warehouses.

Material: Lead-free® ECO BRASS®

Use: The elbow configuration is best used for plumbing projects that require a change in direction of the plumbing line.

Made with lead free ECO Brass

Brass fittings for use with PEX pipe crimp tools.
The Brass Warehouse offers a full line of brass fittings for use with PEX pipe crimp tools for the crimping of hose crimp parts such as crimp rings, pinch clamps, or sleeves. For reliable plumbing performance, trust our quality crimp-style brass fittings designed for the crimp coupling of plumbing parts.

Learn more about our range of crimp-style brass fittings including ECO BRASS® adapters, couplings, drop ears, PEX elbows and PEX tees for all your plumbing PEX crimp needs.


*This product complies with the 0.25% weighted average lead content on wetted surfaces in accordance with Safe Drinking Water Act (SDWA) / Federal Public Law NO. 111-380. **To contact manufacturer or request a copy of the warranty terms, call 800-537-4291 or write Wieland Chase, LLC, 14212 Selwyn Drive, Montpelier, OH 43543. Warranty terms are also available at https://www.waterarmorusa.com/warranty/
Weight N/A
Dimensions N/A
Fitting Type

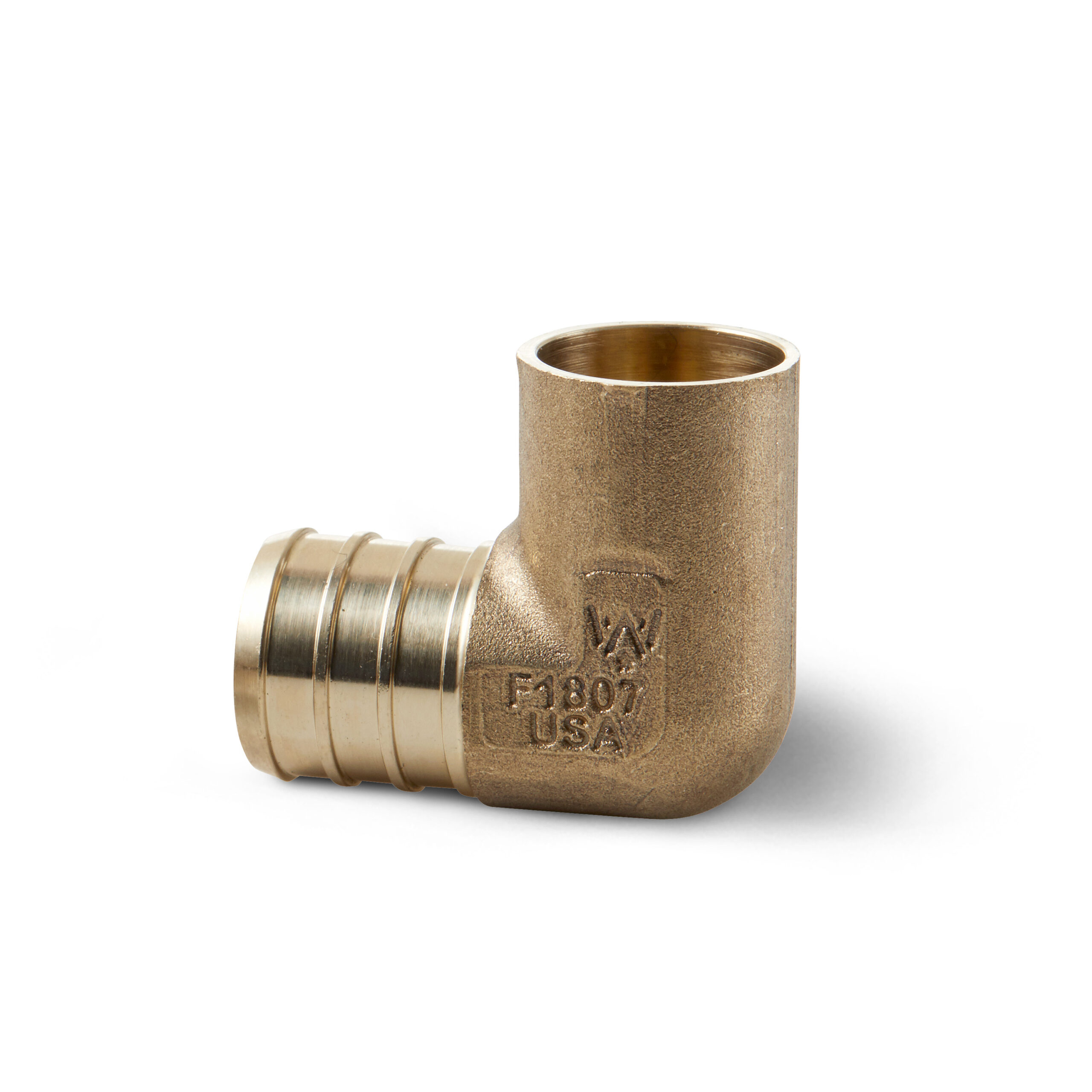

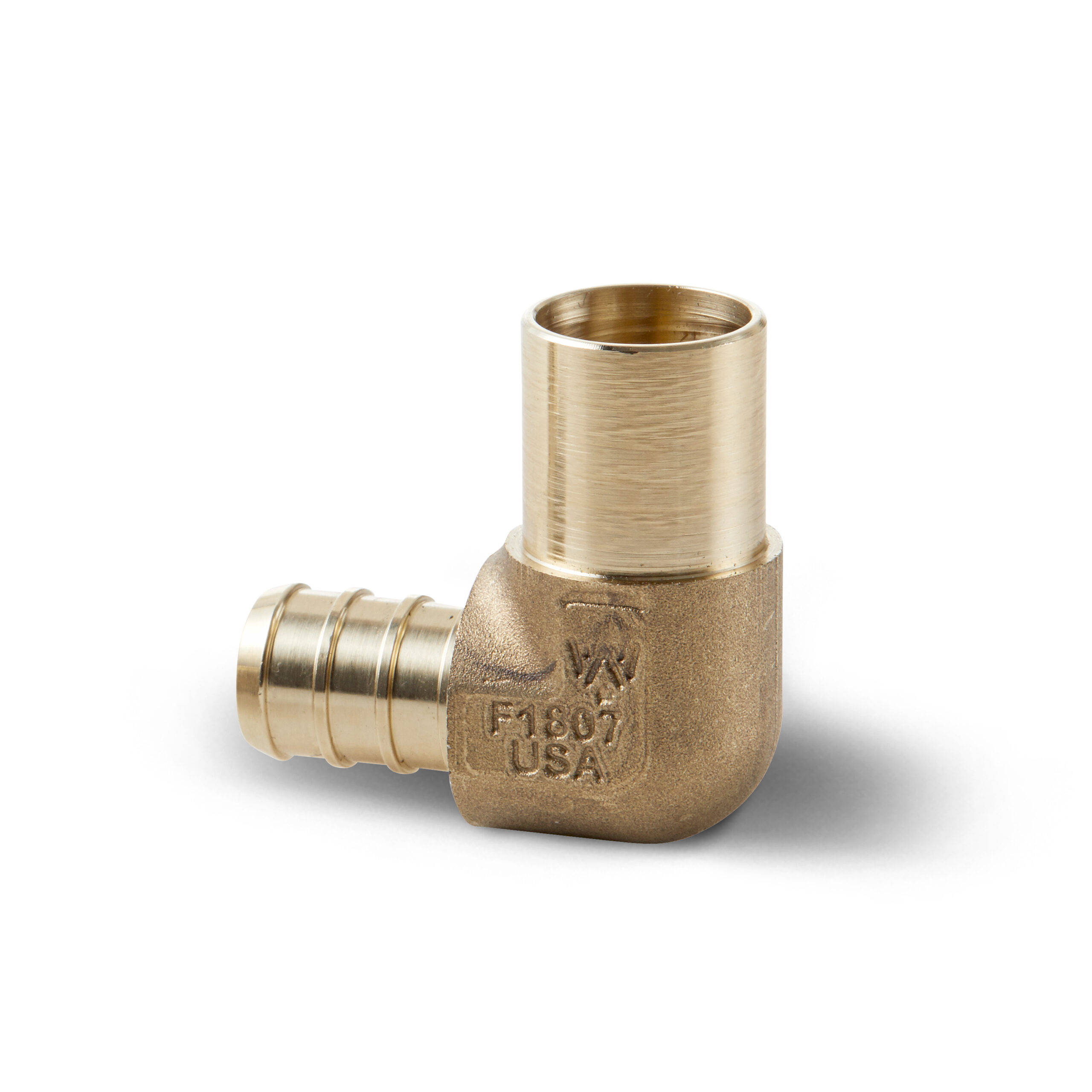

Female Sweat, FNPT, Male Sweat, MNPT, PEX

Size

0.5, 0.75, 0.75 x 0.5, 1

Pack Size

Certifications Third party certification by NSF International includes:
Product is certified to the Uniform Plumbing Code™. Installation in accordance with the manufacturer's instructions and the requirements of the latest edition of the Uniform Plumbing Code™.
Product is certified to the International Plumbing Code. Installation in accordance with the manufacturer’s instructions and the requirements of the latest edition of the International Plumbing Code.
Product is certified to NSF/ANSI 14
Material complies with NSF/ANSI/CAN 61 health effects requirements when tested at temperatures up to and including Commercial Hot (180° F).
Product is certified to NSF/ANSI 372 and conforms with the lead content requirements for “lead free” plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act.
ASTM F1807 & F877
CSAB137.5
Code Compliance Certified by NSF to comply with the Uniform Plumbing Code when installed in accordance with the manufacturer’s instructions and the requirements of the latest edition of the Uniform Plumbing Code.
Certified by NSF to comply with the International Plumbing Code when installed in accordance with the manufacturer’s instructions and the requirements of the latest edition of the International Plumbing Code.
